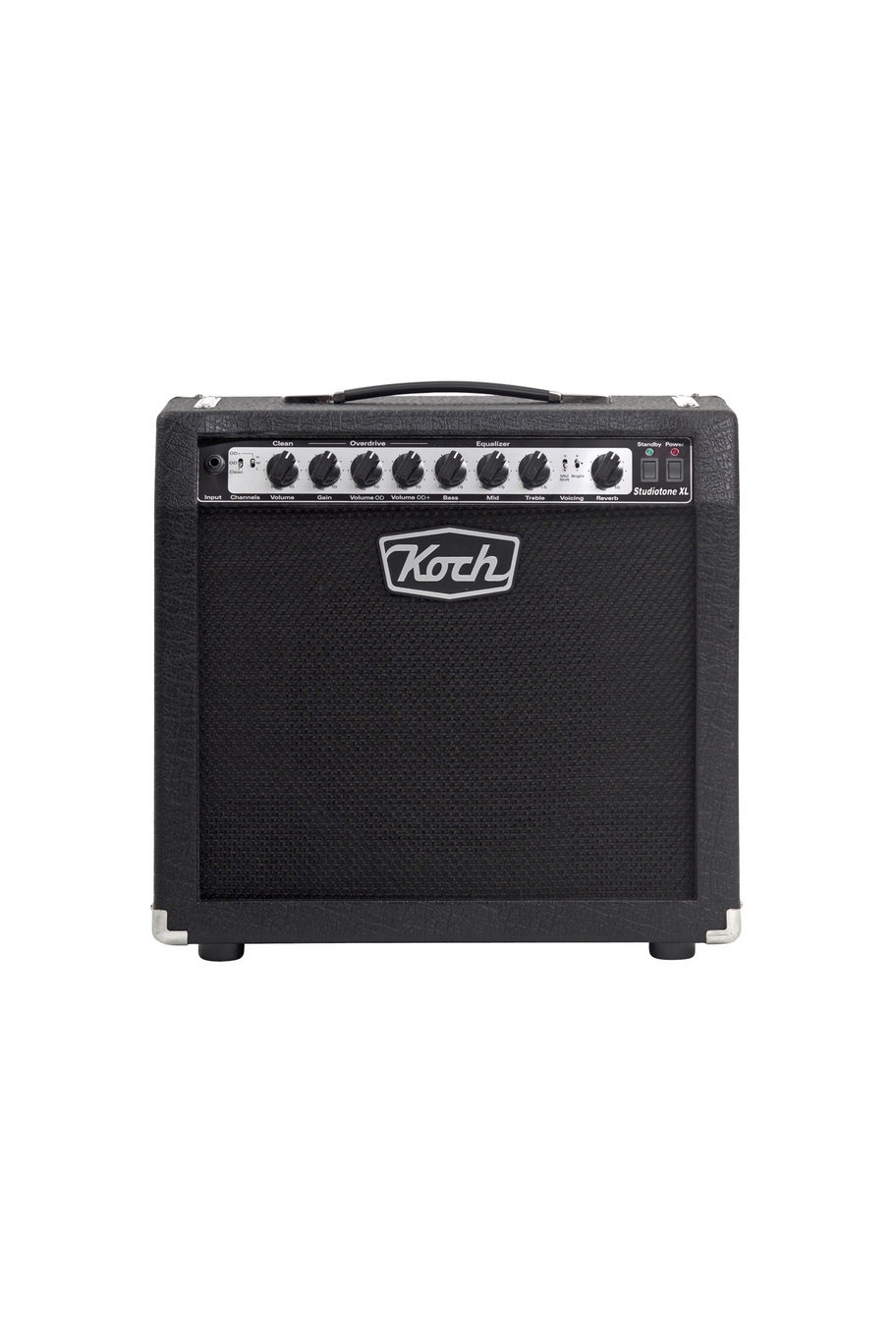

KOCH StudioTone XL 40 Combo 1x12 - 40w

KOCH StudioTone XL 40 Combo 1x12 - 40w

At first glance, you would be forgiven if you dismissed the Koch Studiotone XL as just another combo. In classic Koch tradition however, this compact power combo sounds much bigger, and has more features than one would suspect.

Beginning with four EL84 power tubes in Class A, a newly designed speaker and cabinet, three foot switchable channels and two powerful voicing switches, the Koch Studiotone XL sound brings to mind the British valve amps of the 60s. The three channels (Clean, Overdrive & Overdrive+, all with their own volume control) take you from round warm tones to saturated EL84 overdrive & compression. The 2-way ‘Mid Shift’ allows you to boost the mid frequencies around 800 Hz and the 3-way ‘Bright’ switch allows you to cut or boost the high frequencies for fine-tuning the top end. Some of the big surprises are left for the back panel though, and a quick inspection reveals a serial effects loop, a recording output with microphone placement and cabinet style simulators, two line outputs (one unfiltered and one low level), and a ‘Headphone Out’ jack. Speaker outputs at 4, 8, and 16 Ohm allow for any combination of speakers, and the built-in Power Soak and Speaker on/off switch allow the amp to be played with the speaker turned off for recording or headphone use.

Specifiche Tecniche:

• 4 xEL84 Tubes
• 2 x 12AX7 pre-amp tubes
• 1 x 12AX7LM pre-amp tube
• 3 channels (Clean, Overdrive & Overdrive boost)
• foot switchable and all with their own volume control
• One set of passive bass-mid-treble tone controls
• Two front-panel voicing switches (mid-shift 2 way, bright 3 way) for all channels
• Custom designed VG12-60 Koch 12" speaker
• 4, 8, & 16 Ohm speaker outputs plus speaker on/off switch
• Serial effects loop (10 dBV signal level)
• Recording output with speaker simulation and 2 voicing filters
• Direct outputs (non-filtered, clean channel & headphone)
• Short scale three spring reverb tank
• 2 way footswitch included
• Dimensions 50cm w x 28cm d x 47cm h
• Weight 23 kg
