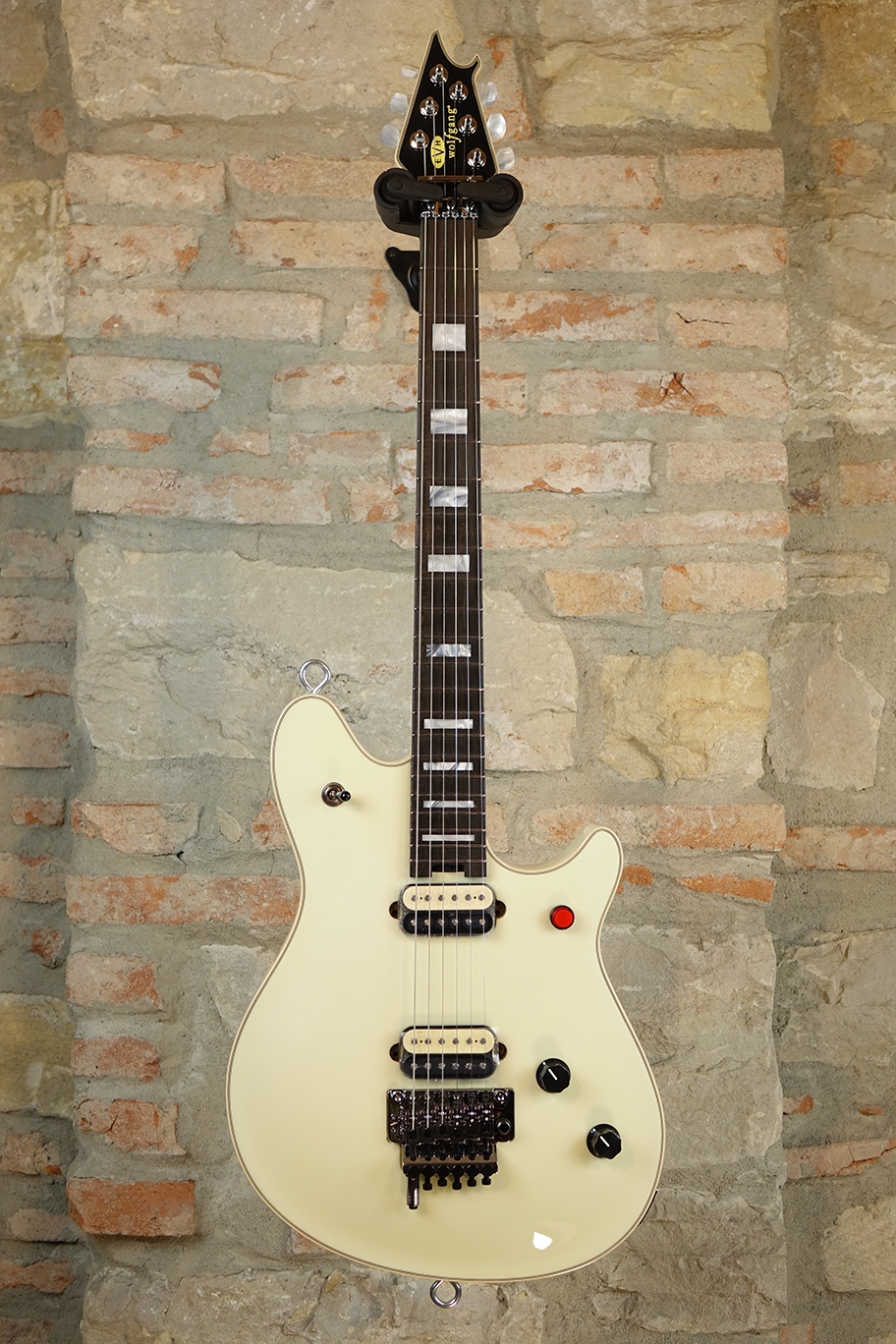

EVH USA Wolfgang Custom Shop - Edward Van Halen Signature - Ebony Fingerboard - Ivory

EVH USA Wolfgang USA Edward Van Halen Signature - Ebony Fingerboard - Ivory

EVH brings you the Wolfgang® USA Edward Van Halen Signature model, loaded with Eddie Van Halen’s most up-to-date specs along with the classic looks and behemoth sound you’ve come to expect from an instrument bearing his name.

The basswood body features a big-leaf maple top and five-ply binding, while the bolt-on quartersawn maple neck is sculpted to Eddie’s precise specs, with graphite reinforcement and a hand-rubbed back finish for smooth, fast playability. The 12"-16" compound radius ebony fingerboard has 22 vintage stainless steel frets, pearloid (Ivory finish) or dot (Stealth finish) inlays, and a convenient heel-mount truss rod adjustment wheel.

Experience scorching and well-balanced tone with a custom-wound alnico 2 EVH® Wolfgang® Humbucker in the bridge and a newly added alnico 3 custom-wound EVH® Wolfgang Humbucker in the neck, both controlled by a special reverse oriented three-way toggle switch. Stutter-stop à la “You Really Got Me” with the red-button kill switch and play “Cathedral” without any crackle or pop, courtesy of the EVH High Friction (Tone) Pot and an EVH “HPU” or High Performance Upgrade, custom-made Low Friction (Volume) Pot.

Sturdy and steadfast, the EVH-branded Floyd Rose® locking tremolo provides endless sustain and precise tuning regardless of how many dive bombs you rip or how drastically you attack your whammy-bar. The EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger.

Boasts elegant and classic style in Ivory or Stealth finishes with chrome hardware, black speed knobs and dog leash strap/eye-bolt clasps. A hardshell EVH Striped SKB case and EVH leather strap included.

Specifiche Tecniche:

BODY

• Finish: Gloss Urethane
• Shape: Wolfgang
• Material: Basswood
• Binding: 5-Ply
• Back: Basswood
• Top: Big Leaf Maple

NECK

• Material: Quartersawn Maple
• Construction: Bolt-On with Graphite Reinforcement
• Thickness: .805″ at 3rd & .890″ at 12th Fret
• Finish: Hand-Rubbed Satin Urethane
• Shape: Wolfgang Backshape
• Scale Length: 25.5″ (648 mm)
• Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Number of Frets: 22
• Fret Size: Vintage Stainless
• Nut Material: Floyd Rose R2 Locking
• Nut Width: 1.650″ (42 mm)
• Position Inlays: Pearloid Block
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: 2.5 mm Hex
• String Trees: Floyd Rose Retainer Bar
• Headstock: EVH Wolfgang

ELECTRONICS

• Bridge Pickup: Direct Mount EVH Wolfgang Usa Humbucking
• Neck Pickup: Direct Mount EVH Wolfgang AL3 Humbucking
• Pickup Color: Zebra
• Controls: Volume (EVH BI Tech HPU Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Pickup Switching: EVH Reverse-Style 3-Position
• Auxiliary Switching: Kill Switch
• Pickup Configuration: HH

HARDWARE

• Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Hardware Finish: Chrome
• Tremolo Arm: Floyd Rose 1000 Series
• Tremolo Block: Brass
• Tuning Machines: EVH-Branded Gotoh
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black

MISCELLANEOUS

• Strings: 09-42
• Strap Buttons: Screw-Eye Hook

ACCESSORIES

• Case/Gig Bag: Included EVH Wolfgang Hardshell
• Included Accessories: Tremolo Arm, Hex Keys & User Manual
