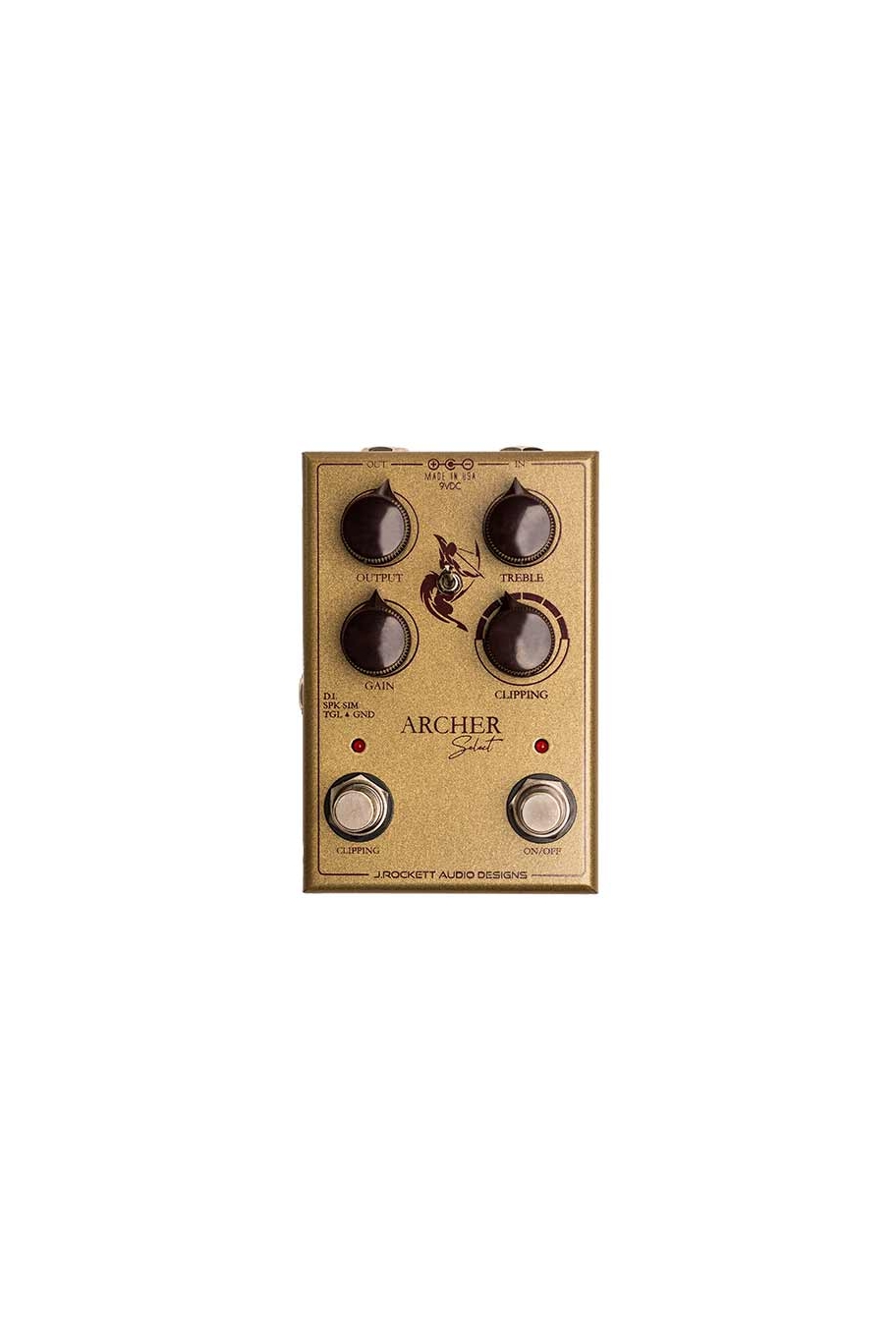

J.ROCKETT AUDIO Archer Select - Boost/Overdrive with Klone Clipping & Cabinet Simulator

Overdrive / Boost
All acclaimed K-style clipping diode options in one box
Controls: Output, Treble, Gain, Clipping dial, Ground switch
Select between 7 different clipping diode options
Stock diode configuration: OA10
Clipping dial diode options: 1N270, 1N695, 1N34A, D9B, D9E, RED LEDs
All configurations use NOS Germanium Diodes (New Old Stock) except of RED LEDs (Option 6)
DI Output and Speaker Simulation for direct monitoring and recording
Ground switch to remove grounding issues
Top mounted jacks
Power Supply: 9V DC, center negative power supply (not included)
Current draw < 100 mA
Made in USA

The Archer Select is a uniquely functioning Boost/Overdrive. Over the years of K style pedals people havesworn by the influence of the proper NOS germanium clipping diodes in order for this particular design to be accurate to the original. There is so much speculation on the internet and certainly misleading information by the original designer. We decided to let your ears be the determining factor and to provide the ability for you to easily switch between 7 different clipping diode options.

If you simply leave the clipping diode foot switch off it defaults to the stock diodes (OA10’s). With the clipping dial you can choose between 6 additional clipping diodes. Depending on which diodes you have the selector knob on you can A/B between the stock diodes and the selected diodes. Diodes range from lowest output to highest output when turning clockwise.

D.I. Speaker Simulator is something we included for those who like to be able to monitor their OD sound viadirect or have the option for direct recordings. The ground switch is solely there for the D.I. in case you havegrounding issues.

Default Diodes are OA10’S. This means that when the clipping foot switch is not engaged these are thediodes you will hear. Once you engage the clipping foot switch you will hear whichever set of diodes you have selected on the clipping dial.Clipping dial options options 1-6:

Option 1: 1N270 Germanium Diodes NOS
Option 2: 1N695 Germanium Diodes NOS
Option 3: 1N34A Germanium Diodes NOS
Option 4: D9B Germanium Diodes NOS
Option 5: D9E Germanium Diodes NOS
Option 6: Red LEDs
There is a subtle difference between all of the clipping diodes but they are arranged from the lowest volume output to highest volume output. This means between the OA10 diodes vs the Red LED’s there will be the biggest volume jump.

As of production today these are the diodes we have selected, however, since all but the LED’s are NOS germanium diodes, availability can and will most likely change in the future. For now we have a healthy supply. Please experiment and remember you only hear clipping diodes when they are clipping so experiment with the gain.
