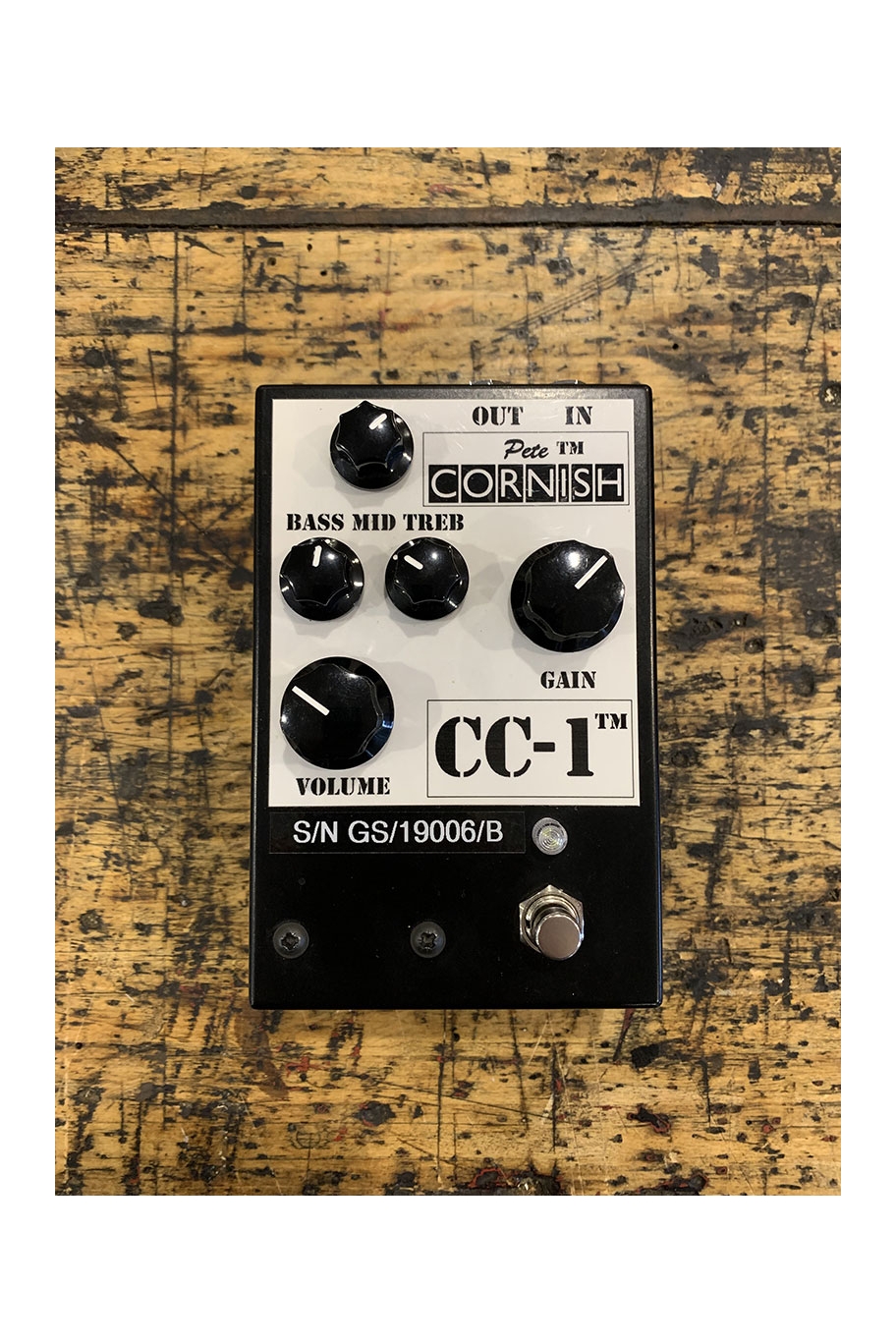

PETE CORNISH CC-1 Battery Free - CC1 Overdrive - Hand Made in UK

Pedale in condizioni esattamente pari al nuovo
Senza mezzo graffio o difetto
Perfettamente funzionante e originale al 100%
Completo di scatola originale e documenti

Descrizione originale:
Pedale boutique Pete Cornish modello CC-1 Battery Free, overdrive medium gain di qualità top, uno dei migliori OD in circolazione, realizzato a mano da Cornish in UK.
Questo marchio è considerato un punto di arrivo tra i musicisti, non a caso artisti come David Gilmour e Brian May utilizzano i pedali Cornish come parte essenziale nel proprio setup.
La versione Battery Free è identica alla Grey Series a livello di suono, ma è "pedalboard friendly" perchè più compatta, non è dotata di batteria, quindi può essere alimentata solo tramite alimentatore esterno non incluso.

My new Cornish Crunch pedal, which has taken over a year to perfect, is available to order from January 2013 . The CC-1™ is not a variant of any existing product but a completely new and original design.

The CC-1™ features two fixed low gain Soft Clipping Stages preceded by a variable gain (maximum +22dB) linear preamp to compensate for low output pickups and provide extra drive to the soft clipping stages if required. The advantage of using two low gain Soft Clipping Stages rather than hard diode clipping is that they are effectively (and automatically) removed from the audio path when the signal level drops below their transition point - ensuring a complete “cleanup”
if the guitar volume is reduced.

As the signal level increases due to stronger playing the soft clips gradually engage and start to add harmonics - more signal = more harmonics - but the loudness continues to increase as there is no clamping of the signal peaks. Dynamics are therefore preserved and superb musicality results.

Following on from the Soft Clipping Stages is a three band active EQ using frequencies I have specifically tailored to suit guitars. Being active, the three tone bands can be both cut and boosted as desired with the zero or neutral point being 12 o'clock on each control knob. I have included a second linear boost stage after the tone circuit to compensate for any reduction in overall volume when the tones are in "cut" mode.

The benefits of this active tone circuit, compared to the usual passive (Cut only) tone circuit is that the three bands are completely independent and there is no inter reaction between the Bass, Middle and Treble tone controls.

An output Master Volume is included to allow for perfect matching between bypassed and boosted/EQ’d signal level and there is plenty of signal headroom available to overdrive amp inputs if required.

My well established Class A input buffer and radio frequency suppressor is, of course, included and the output buffer impedance is low; to easily drive long cables or other loads without loss of signal or tone.

TECHNICAL SPECIFICATION:

Overall boost with Gain = 100% and Volume = 100% is +34 dB
Overall boost with Gain = 0% and Volume = 100% is +12 dB
The above with Bass, Middle and Treble set to 50% (Neutral point).
Bass Control range +/- 13dB @ 70Hz
Mid Control range +/- 15dB @ 1.5KHz
Treble Control range +/-16dB @ 5KHz
Maximum signal output with Volume 100% is +10dBm/ 2.5vrms/6v Peak to Peak.

FEATURES:

High Impedance RFI rejecting input and bypass buffer.
Each unit is hand built, wired and tested by Pete, Lynda and Mingus Cornish.
Housed in a Rugged Die-cast box with easy to set Number Knobs.
Heavy Duty all-metal footswitch with Hi-Brite LED.

Dimensions: 145 X 95 X 49 mm

An input for a DC adaptor is fitted: the size of the coax connector is 5.5/2.1mm and the centre pin is negative (-VE). The voltage rating of the adaptor should be noise free, fully stabilised at 9V DC and capable of supplying 20mA. We recommend the use of the Voodoo Lab Pedal Power 2 Plus adaptor as meeting the above criteria and cannot accept any liability for damage caused to this unit by the use of, or to, any other type of AC/DC adaptor. An adapter proving an output of an AC voltage should not be used as it will permanently damage the pedal: such damage is not covered under our warranty. If only a single unit is to be powered the BOSS PSA series may be more cost effective and is also recommended; but do not “Daisy Chain” other effects if using this adaptor as this may cause hum problems.
