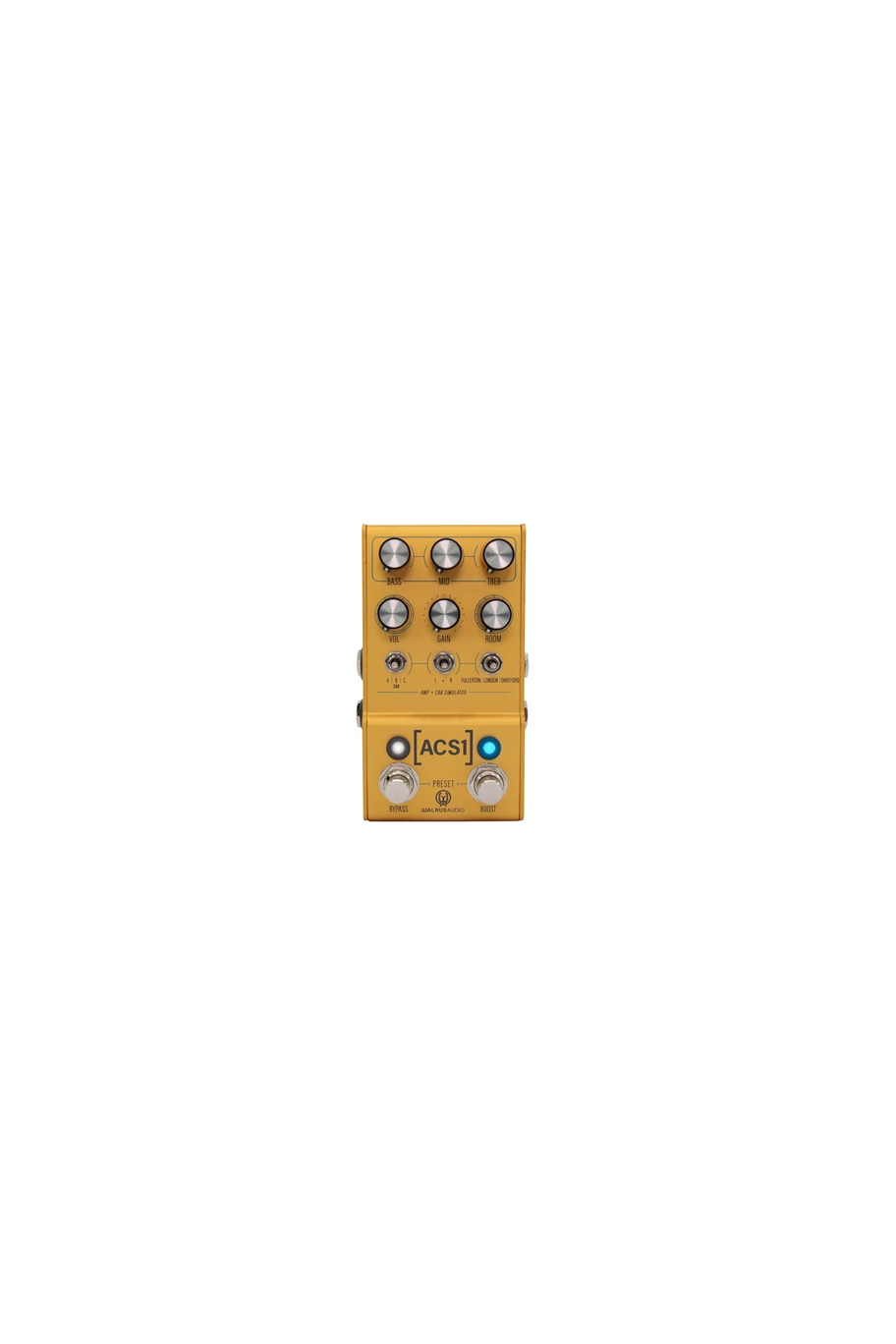

WALRUS MAKO Series ACS1 - Amp + Cab Simulator

WALRUS MAKO Series ACS1 - Amp + Cab Simulator

Amplifier and speaker cab simulator

Sound and feel of world-class amps and complimentary speaker-cabs

Controllable room size for adding sense of space

Stereo or mono operation

Stereo option: separate amp/cab combinations in left and right channel

3 vintage amp styles crucial to music history: Fullerton, London, Dartford

Fullerton: inspired by the classically bright and clear Fender® Deluxe Reverb

London: inspired by a 1962 Marshall® Bluesbreaker with valve-driven breakup

Dartford: inspired by the jangly high-end tones from a 1960s Vox® AC30

6 high-quality cabinet impulse responses (IRs)

Load your own IRs via dedicated web app (walrusaudio.io)

Boost function to quickly jump to a preset level of volume and/or gain

USB jack for firmware updating and IR loading

Headphone output for bedroom practice

Nine on-board presets

128 presets accessible via MIDI

MIDI In/Out DIN connections

Designed equally for live- and studio-applications

Three bypass modes: true bypass, DSP+ true bypass (trails) and DSP bypass

Built on powerful MAKO platform with Analog Devices SHARC processor

24-bit 48kHz A/D and D/A converters for high quality audio

32-Bit floating point processing

Anodized gold finish with black and green ink

9-volt DC, Center Negative, 300mA minimum

12,4 x 6,7 x 6,4 cm

Power Supply not included

Made in the USA

The ACS1 is an amplifier and speaker cab simulator delivering the sound and feel of world-class amplifiers, complimentary speaker cabinets, and controllable room size. Players can maximize their stereo experience and use the ACS1 to run separate amp and cabinet combinations in the left and right channels.With the ASC1, players have expansive options to deliver their tone whether it's on stage, in the studio, or practicing at home. Simple controls, stereo in and out, onboard presets, and MIDI support make the ASC1 an immeasurable tool in a guitarist’s arsenal.

Amplifiers

The ACS1 models three vintage amp styles crucial to music industry history designated by their places of origin.When running the ACS1 in stereo, one amp can be used through both channels. To sweeten the charm of playing in stereo, mix and match amps and cabinets on the left and right channels with the L + R switch. Simply choose the channel you want to modify, select your amp and cab model, and set your levels. Then flip over to the other channel and choose your amp and cab settings. If you would like to use the same settings on both channels, set the switch to the middle or “+” and dial in all your settings. They will be duplicated on the left and right outputs.

Volume and Gain work together, similar to how they would on an amp. For example, increasing gain levels will also raise overall volume output so adjust the volume knob accordingly.

Fullerton is inspired by the classically bright and clear Fender® Deluxe Reverb. Crisp clean tones with loads of headroom that players have come to love over the years.

London is inspired by a 1962 Marshall® Bluesbreaker with harmonically rich, valve-driven breakup. Articulate and sensitive response.

Dartford is inspired by the legendary jangly high-end tones from a 1960s Vox® AC30 with all the bite and chime from the British Invasion.

Cabinet IRs

The ACS1 holds six high-quality cabinet impulse responses (IRs). It ships pre-loaded with six custom cabinet IRs developed by Walrus Audio that sound great with each amp. Users also have the option to load their own IRs via our new customer web app found at walrusaudio.io.

Use the ABC Cab toggle switch to select your cab preference. Access the second set of cabs by holding down bypass while changing the cab toggle position.

Room Ambience

Simulate the size of the room that your amp and cabinet are in. At zero, it would resemble tracking your amp in an isolated environment with no reverb. At max would emulate a natural-sounding, large studio environment.

Presets

Save up to three presets onboard by dialing in your favorite sound then pressing and holding the bypass and boost switch simultaneously. Both LEDs will flash confirming your settings were saved. Cycle through presets by pressing and releasing bypass and boost simultaneously. The pedal will cycle through the three onboard presets - red, green, and blue. When power is removed from the pedal, it will boot up in the last used preset. Using MIDI, up to 128 presets can be saved and recalled.

Boost

A boost feature is available by pressing the boost switch. It allows you to quickly jump to a preset level of volume and/or gain. The boost LED will flash letting you know that it is active. To set the boost, simply click the switch on and adjust the volume and gain knobs to taste. Pressing the boost switch again will save your boost settings and return the pedal to its normal level of volume and gain.

Dimensions and power consumption:

6,7 x 12,4 x 6,4 cm (W x D x H)

300 mA

In the box:

Walrus Audio Mako Series: ACS1

Manual

Sticker

Guitar pick

Pouch
